Mechanical strokes
Examples and descriptions of mechanical glass breaks are provided below.
It is not possible to cover the break views of all surfaces. Time after time, depending upon the type of glass, the type of load, strength and affect time, varied breakages of the surface and the break views occur. But they are very similar to the submitted samples. Due to many reasons and varied factors, it is not always possible to determine the precise and accurate reason of the glass fragmentation. In most cases, sufficient expierence of the expertise performance and even complicated laboratory research are necessary.
|
Delta break II
|
Delta break I
|
Surface pressure break V (explosion fragmentation) - multi-level safe glass
|
|
Surface pressure break IV (explosion fragmentation) - polished glass
|
Surface pressure break III
|
Surface pressure break II
|
|
Surface pressure break I
|

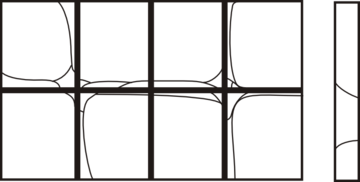

Break by the decorative frame II - in the glass pack
|
Break by the decorative frame I - in the glass pack
|
|
Torsion fragmentation
|
Jam crack
|
Edge break II - partially tempered glass
|
|
Edge break I - polished glass
|
Edge break from pressure III (primary breach)
|
Edge break from pressure II - thermally reinforced glass
|
|
Edge break from pressure I - polished glass
|
Corner break from the hit
|
Fissure of the edge from the hit
|
|
Stone throw hole II - laminated glass
|
Stone throw hole I - polished glass
|
Stone fling hole II = laminated glass
|
|
Stone fling hole I - polished glass
|
Shot hole II - laminated glass
|
Shot hole I
|
|
Nickel sulfide breakage of tempered glass "Spontaneous break"
|
Break of tempered glass
|
